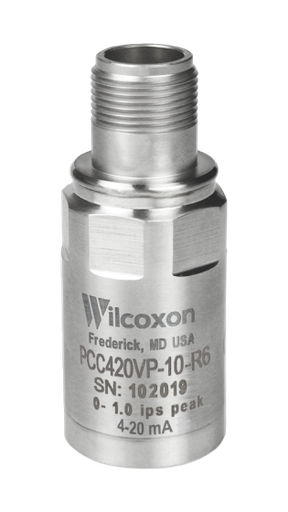

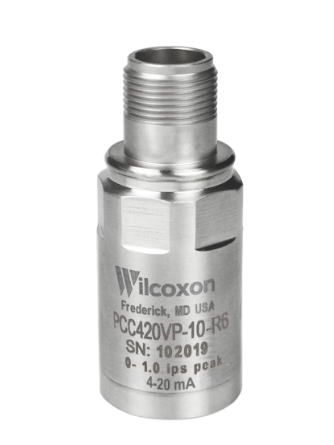

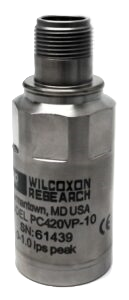

MODEL PCC420VP-10-R6, (0-1ips peak)
EAR99

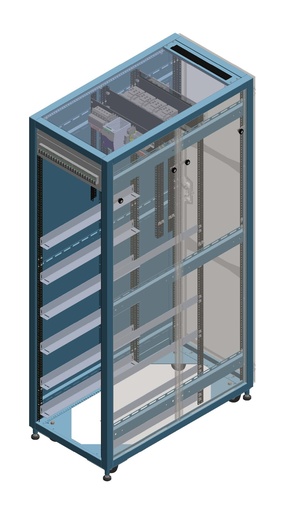

42U integrated turn-key cabinet. Includes front and rear lockable vented doors, 4 castors, two lockable, AC central connection with circuit breakers.
Two AC Mains connection ports with 8 pcs 3ph 480V~ 40A circuit breakers for each 30kW chassis.
Emergency stop function via PILZ mushroom hit-button on the front and remote contact, arranged via integrated contactors 2x 480V~ 128A.
Prepared to host 8x 4U power instruments in parallel connection through share-bus and summary-bus pre-configured for hosting up to 240kW.
Include a Surge Protection Device type 1 Compliant to NFPA 79/UL 508 (US Safety of Machinery, Electrical equipment on Industrial Machines)

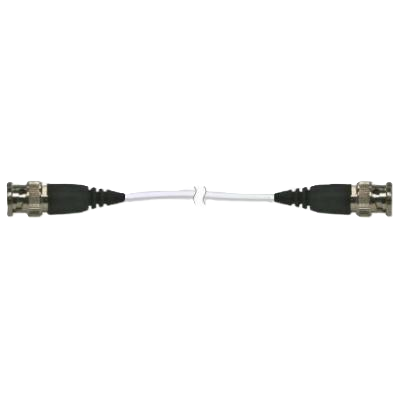

General purpose coaxial cable, white FEP jacket, 20-ft, BNC plug to BNC plug

DR4-04

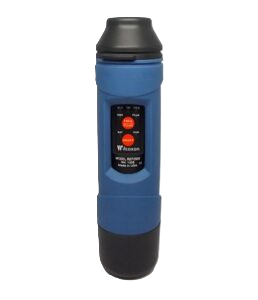

REF2510R, HANDHELD SHAKER/CASE/BOOT
9B990

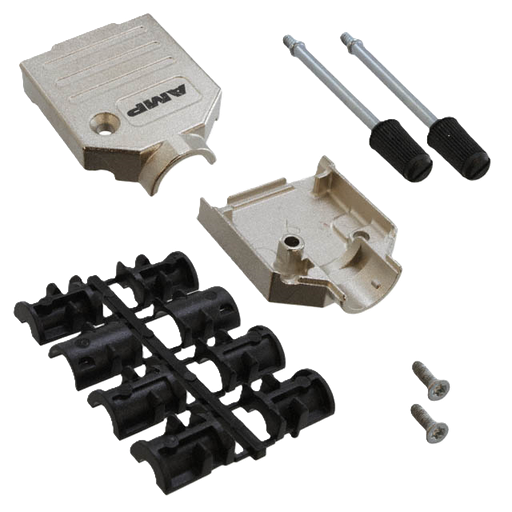

9 Position Two Piece Backshell Connector Silver 180° Shielded

4U Configuration

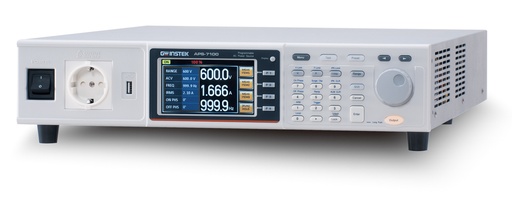

GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.

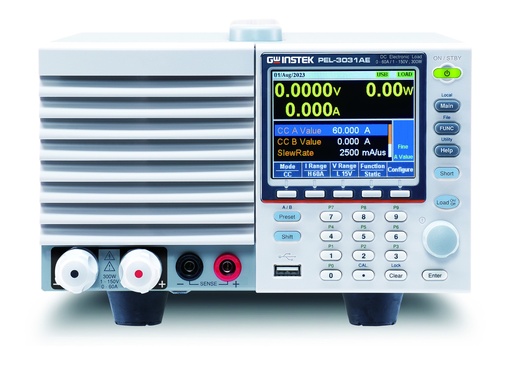

GW Instek launches new PEL-3000AE series programmable single-channel electronic load. In the series, PEL-3031AE provides 300W (1V~150V/60A) and PEL-3032AE provides 300W(2.5V~500V/15A) current sink capability. Inherited from the PEL-3000 series, PEL-3000AE has an easy-to-read LCD panel and user-friendly interface.

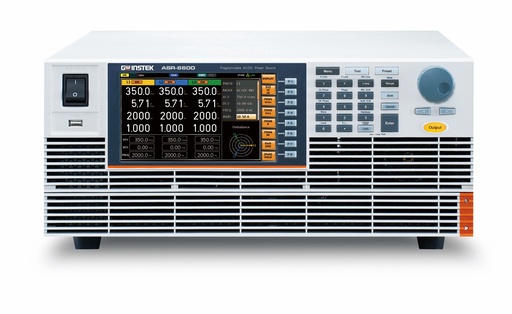

ASR-6000 is the first stand-alone unit from GW Instek that supports AC single/three-phase input and output, and has rated DC power output. The series employs compound semiconductor silicon carbide (SiC) technology to create a 4U 6 kVA high power density and high-performance AC /DC power source.

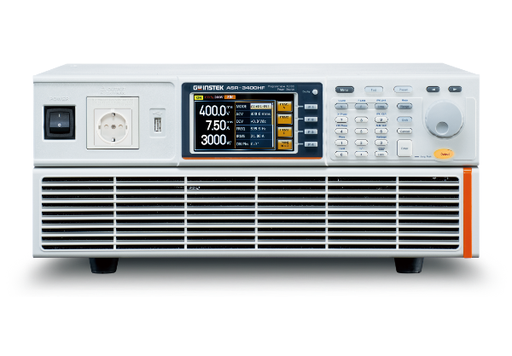

The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100 μs).

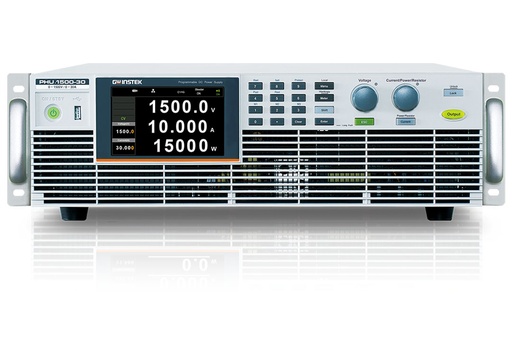

The PHU Series is a single-channel programmable DC power supply with a multi-range output feature which offers a wide range of voltage and current combinations for greater flexibility. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 15 kW of high output and keep the compact size at just 3U height.

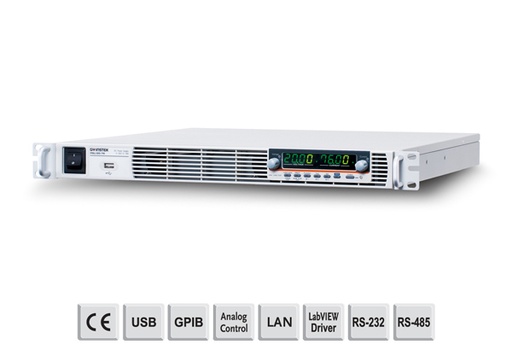

GW Instek PSU-Series, a DC power supply with high power density design, is 1U in height and compatible with 19” Rack Mount Size. The series is suitable for test system installation or system integration by flexibly selecting models for the integration into the existing test system. The PSU- Series, featuring superior voltage and current control functions, comprises fifteen models with output voltage/current ranging from 6V/200A to 600V/2.6A. The Series is suitable for different test conditions and DUTs, including electronic components testing, micro resistors, relays, shunt resistors, 12V/24V/48V battery simulation, and automotive electronic device testing.

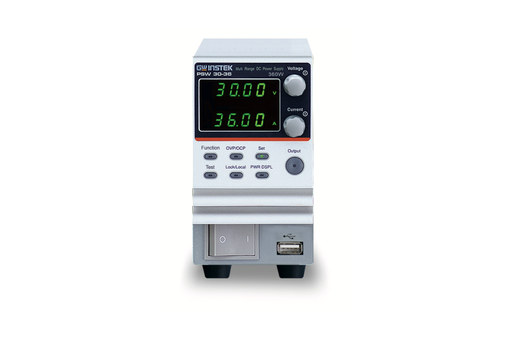

The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30 V, 40 V, 80 V, 160 V, 250 V, and 800 V rated voltages and 360 W, 720 W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.

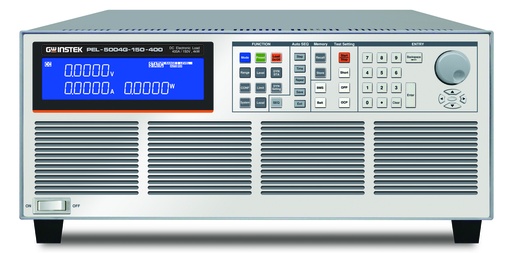

GW Instek PEL-5000G series single-channel electronic load provides 150 V/ 600 V/ 1200 V models with a power range of 4 kW to 6 kW. PEL-5000G has a total of 9 models featuring different combinations of power, voltage, and current. It can test and verify the specifications of batteries, electric vehicle chargers/charging stations and electric vehicle batteries. PEL-5000G supports parallel connection for same voltage specification and different power models. PEL-5000G can support up to 8 units connected in parallel to provide a maximum power of 48 kW.

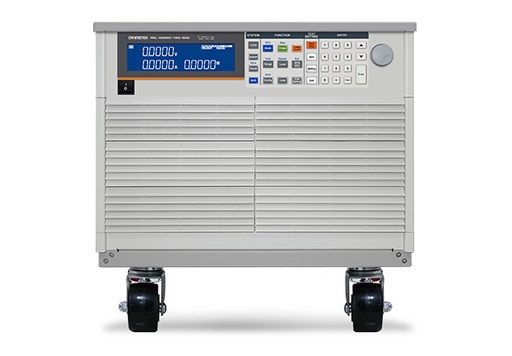

GW Instek PEL-5000C series single-channel electronic load provides 150V/ 600V/ 1200V models with a power range of 6kW~24kW. PEL-5000C has a total of 24 models featuring different combinations of power, voltage, and current. It can test and verify the specifications of batteries, electric vehicle chargers/charging stations, electric vehicle batteries and solar panels. PEL-5000C supports parallel connection for same voltage specification and different power models. PEL-5000C can support up to 8 units connected in parallel to provide a maximum power of 192kW.

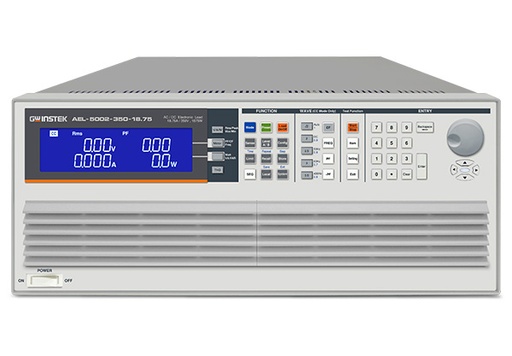

GW Instek launches 20 models of the AEL-5000 series AC/DC electronic loads depending on the power range. The power range of a single unit is from 1875W to 22500W, and up to 8 units can be connected in parallel. The maximum power of single-phase parallel connection can reach 180kW, and the total power of 3-phase can reach 540kW, which are suitable for UPS, Inverter/Breaker, AC Power Source, Battery, Fuse/Breaker, DC Power Source and other applications.

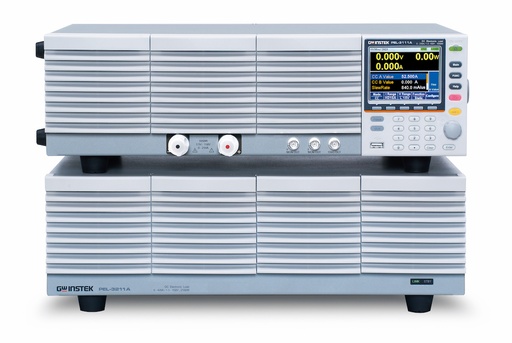

The PEL-3000A series, a single-channel, programmable D.C. electronic load with 0.01 mA current resolution and 16 A/μs current Slew Rate, is very ideal for testing SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 175 W to 1050 W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications.

PSW-Multi series is a dual-channel or triple-channel wide range output programmable switching DC power supply.

The maximum output power can reach 1080 W.

There are 13 dual-channel models with a rated power of 720 W, and 24 triple-channel models with a rated power of 1080 W.

The rated voltages of low voltage modules are 30 V, 40 V, 80 V, 160 V.

The rated voltages of high voltage modules are 250 V and 800 V.

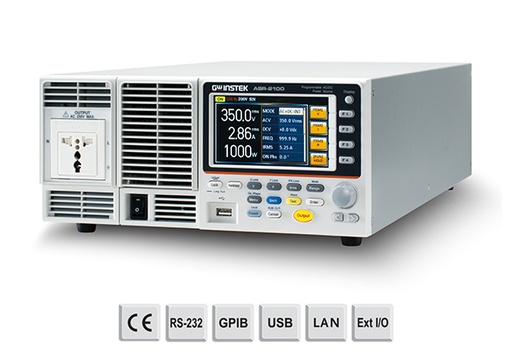

The ASR-2000 series, an AC+DC power source aiming for system integration or desktop applications, provides both rated power output for AC output and rated power output for DC output.
