Infrared Temperature Measurement

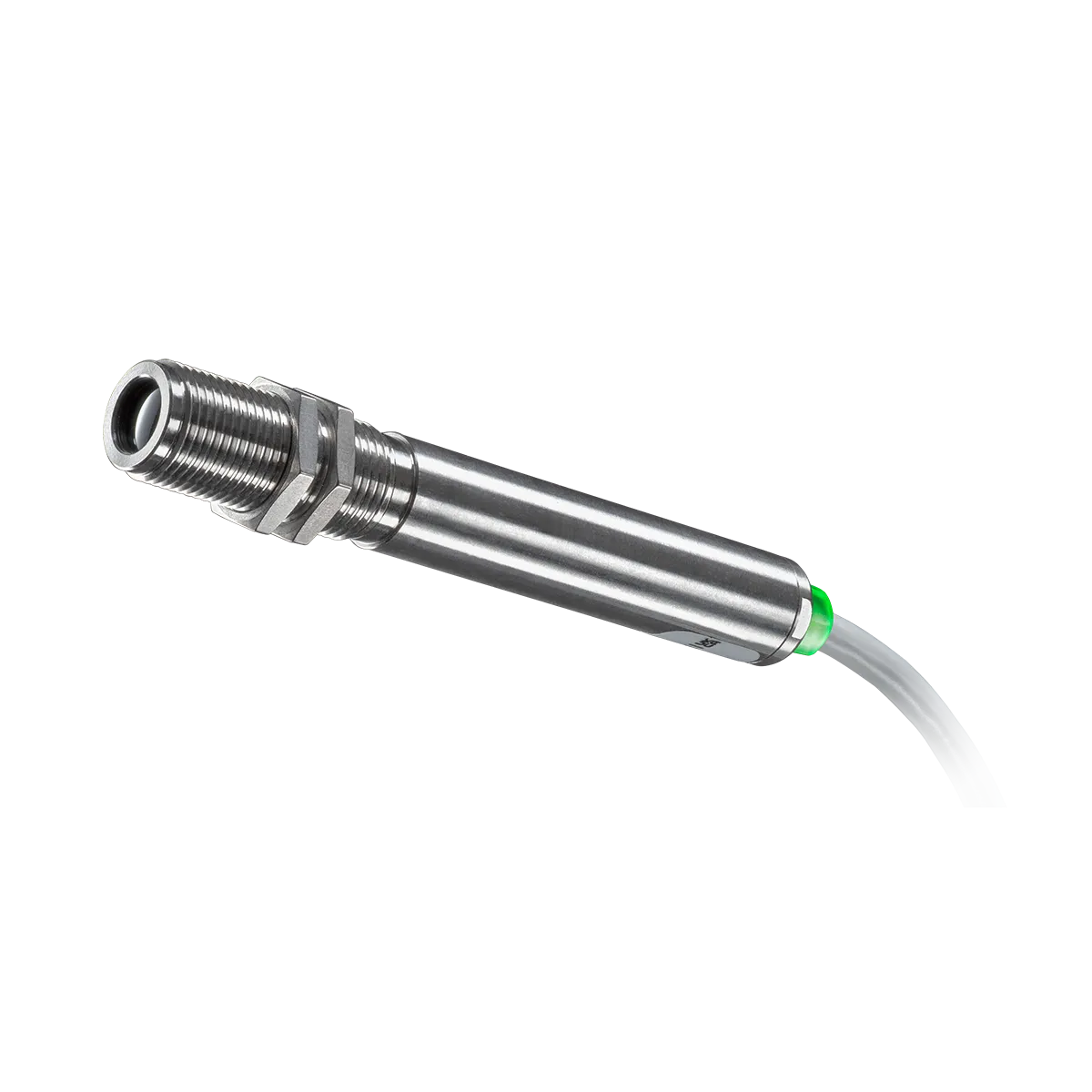

The infrared pyrometer optris CS LT is ideally suited for non-contact temperature measurements in small and narrow environments. The robust sensing heads measure temperature from -50 °C to 1030 °C. With a high distance-to-spot size ratio of 15:1, the CS LT offers small spot sizes from far distance.

The CSmicro LT pyrometer offers an economical yet advanced solution for infrared temperature measurements in industrial settings. Its thermopile detector provides accurate infrared non-contact temperature readings across a wide spectrum from 8-14µm, ideal for high-emissivity targets even at low temperatures.

The CSmicro LTH pyrometer is a prime choice for infrared temperature measurements in industrial environments. Its special thermopile detector enables precise non-contact temperature sensing across a broad 8-14µm spectrum, particularly excelling with high-emissivity targets in a temperature range from -50 °C to 1030 °C.

The CSmicro LT hs pyrometer sets a new standard in temperature resolution, pushing the boundaries of low-noise infrared pyrometry to achieve remarkable precision. The thermal sensor can detect temperature variations as subtle as 0.025 °C, particularly with high-emissivity targets, offering precise and detailed non-contact sensing across the 8-14µm infrared spectrum. While it remotely measures temperatures of infrared targets within a temperature range of -20 °C to 150 °C, the sensor head operates from -20 °C to 75 °C.

The Optris CSmicro 2M pyrometer is designed for temperatures from 250 °C to 1600 °C, excelling in accurately measuring metal temperatures with a specialized spectral range around 1.6 µm. The compact pyrometer allows easy installation in tight spaces, making it ideal for integration into machinery, measuring hot metals like steel, tungsten, and iron.

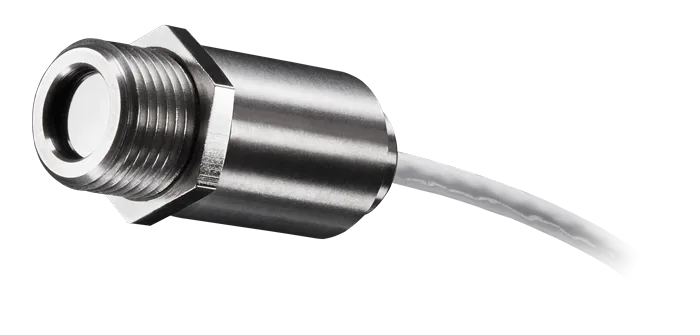

The Optris CSmicro 3M pyrometer accurately measures temperatures from 50 °C to 600 °C, specializing in gauging metal temperatures with its 2.3 µm spectral range. Its compact design allows for easy installation in tight spaces, frequently used in applications with hot metals like steel, tungsten, iron, nickel, brass, and composites.

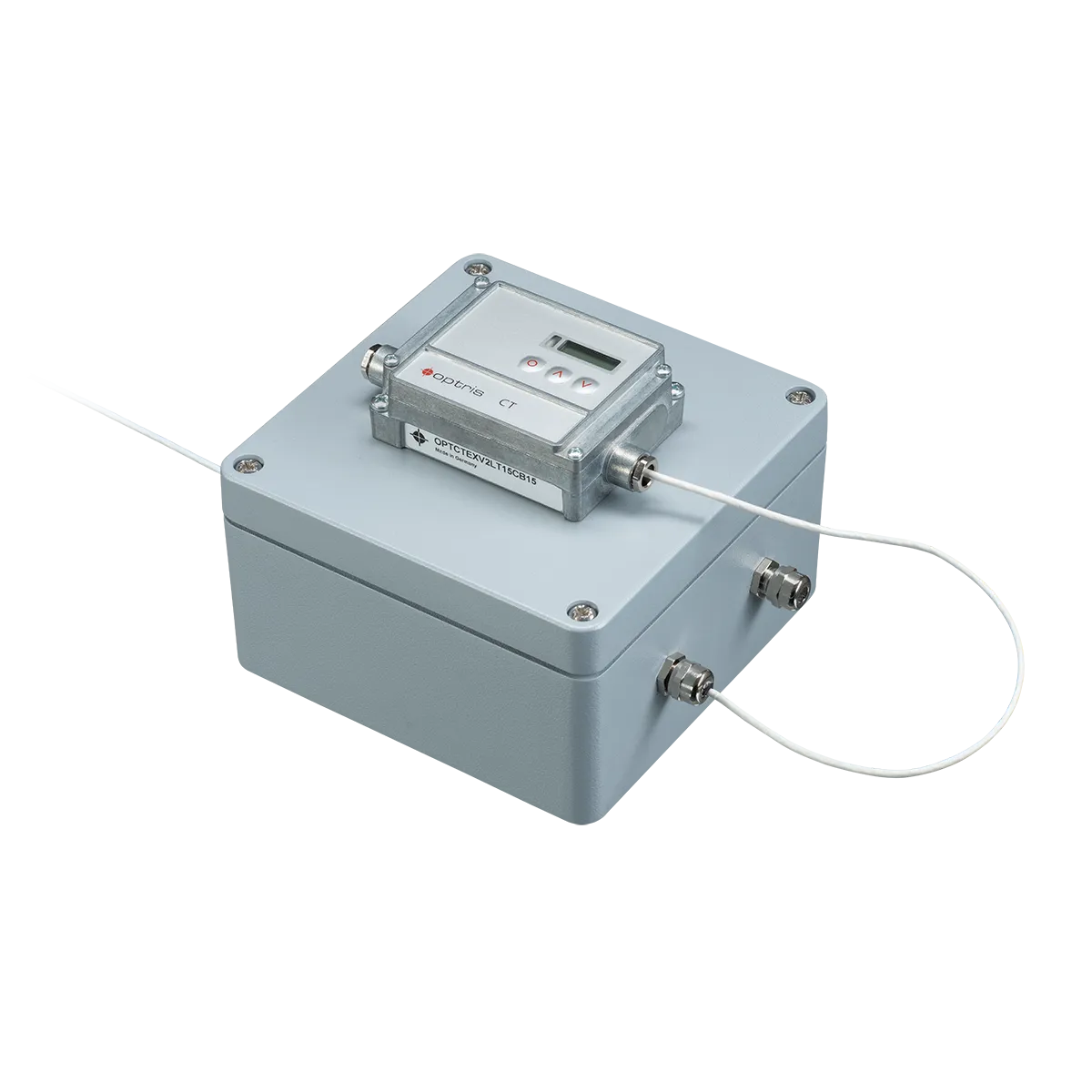

Safety is the top priority, and the Optris CT series pyrometer addresses this with its version CTex, which can be used in hazardous area (ATEX) where typically explosion-proof sensors must be installed.

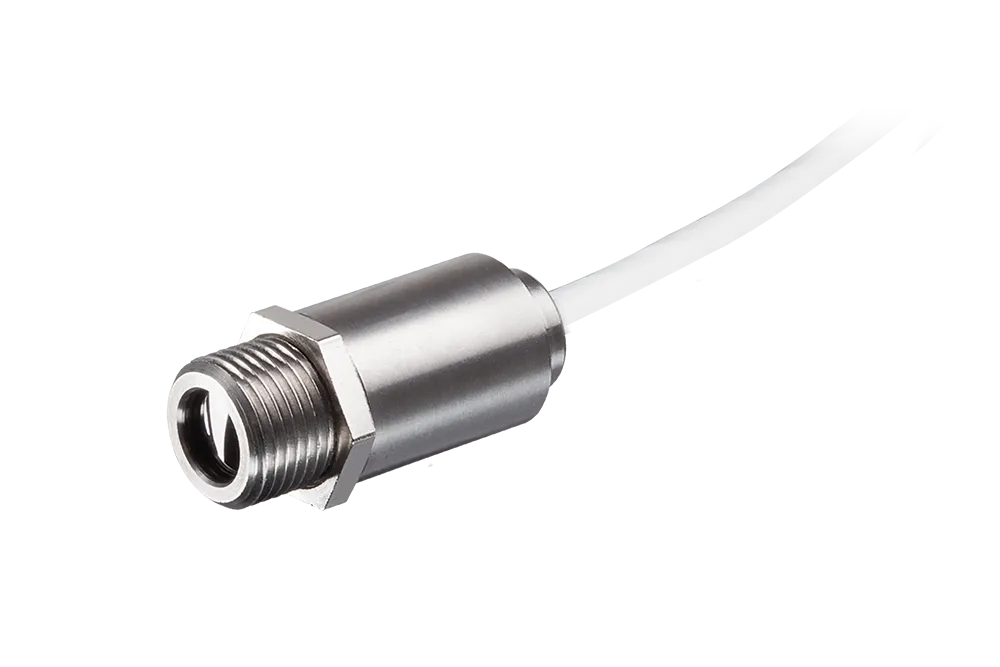

The Optris CTfast LT pyrometer quickly captures non-contact temperature data remotely. Its remarkably short response time of 6 ms makes it an ideal choice for applications requiring speedy measurements.

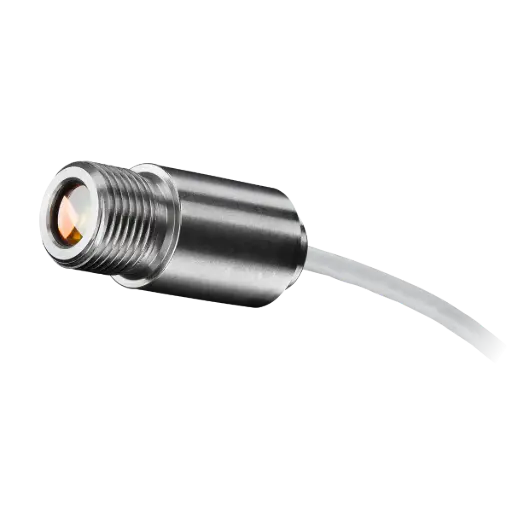

The Optris CT 1M pyrometer accurately measures temperatures from 485 °C to 2200 °C across different variants. Its specialized spectral range, compact size, and rapid response time suit hot metal applications.

The Optris CT 2M pyrometer, with its short-wavelength technology, ensures precision by being insensitive to emissivity variation and boasting high optical resolution. Available in variants to measure temperatures from 250 °C to 2000 °C, it caters to various ranges: 2ML (250 °C...800 °C), 2MH (385 °C...1600 °C), and 2MH1 (490 °C...2000 °C).

The Optris CT 3M is a reliable, non-contact temperature measurement solution. It is particularly adept at handling challenging materials in low-temperature environments, with a focus on metal applications.

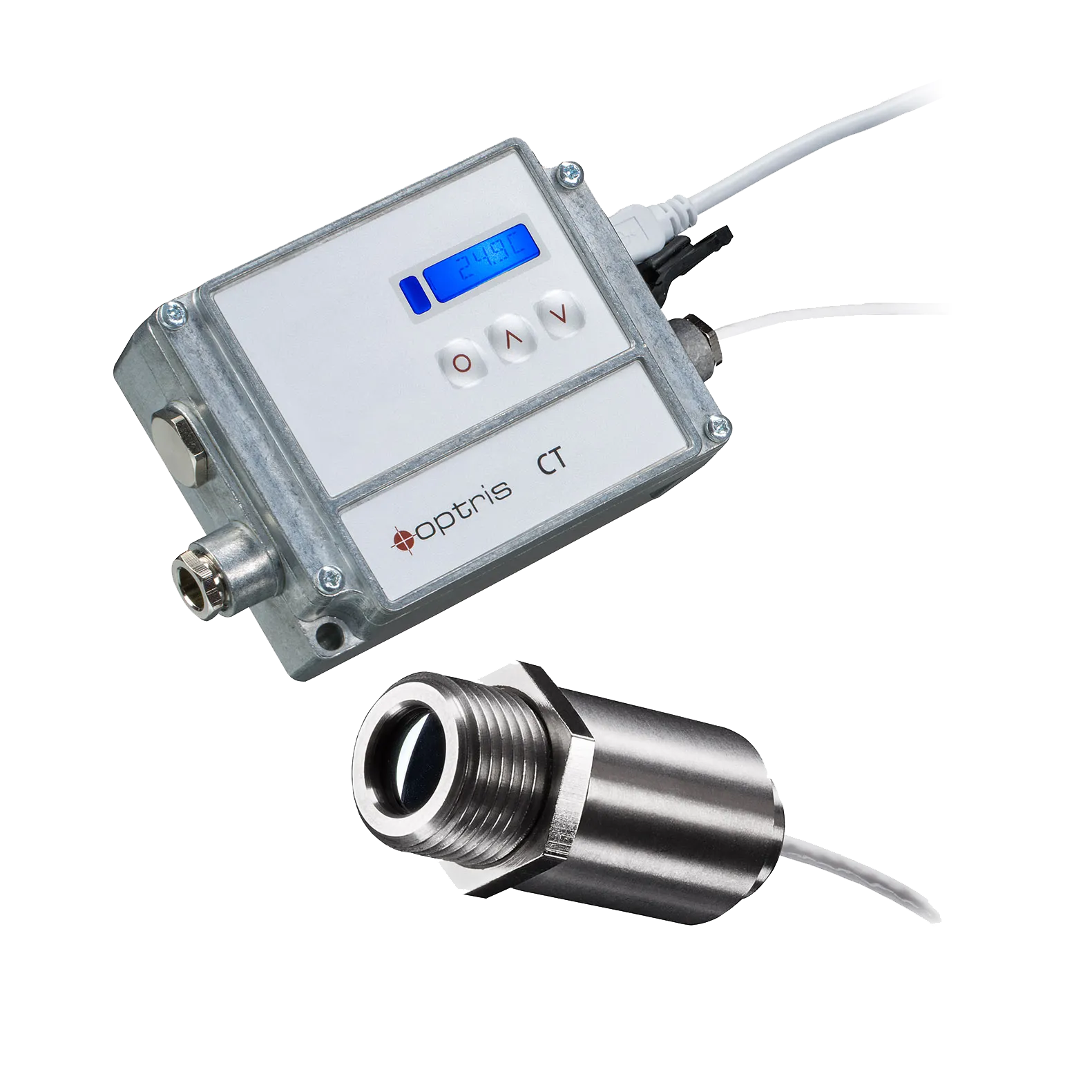

The quick exposure time of only 90 μs makes the high speed IR thermometer CT 4M the perfect sensor for measuring fast processes.

The Optris CT G5 pyrometer is designed for precise temperature measurement in glass-related industries, featuring a two-piece sensor design with a separate electronic box for integration-friendly operation.

The Optris CT P3 pyrometer is designed for precise temperature measurement of thin plastic films, utilizing a spectral range of 3.43 µm for accuracy between 50 °C and 400 °C. While plastics thicker than 0.4 mm and pigmented films are easily measured in the long-wavelength IR spectral range, very thin plastic films are transparent in this spectral range.

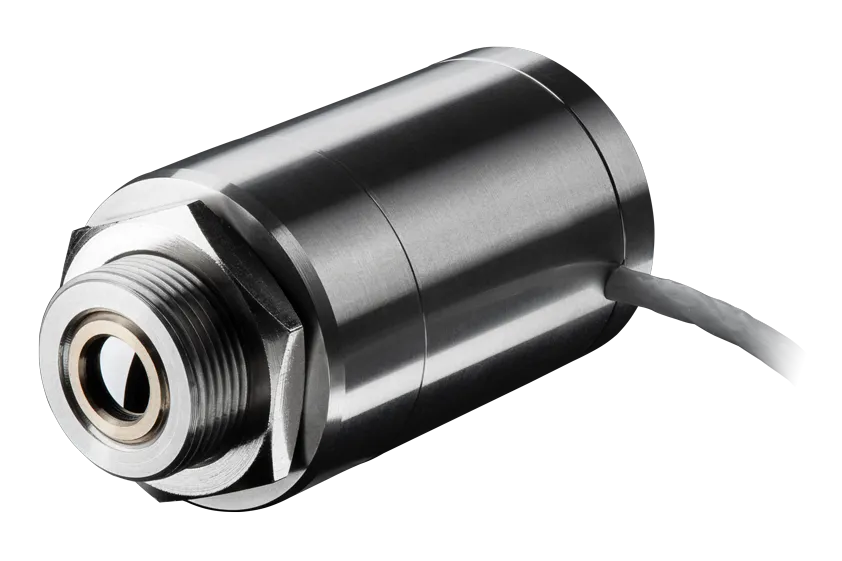

The Optris CT P7 pyrometer is tailored for non-contact temperature measurement of thin plastics, spanning from 0 °C to 710 °C. Its 7.9 µm spectral region ensures precise readings, with a temperature-resistant head capable of withstanding up to 85 °C without cooling.

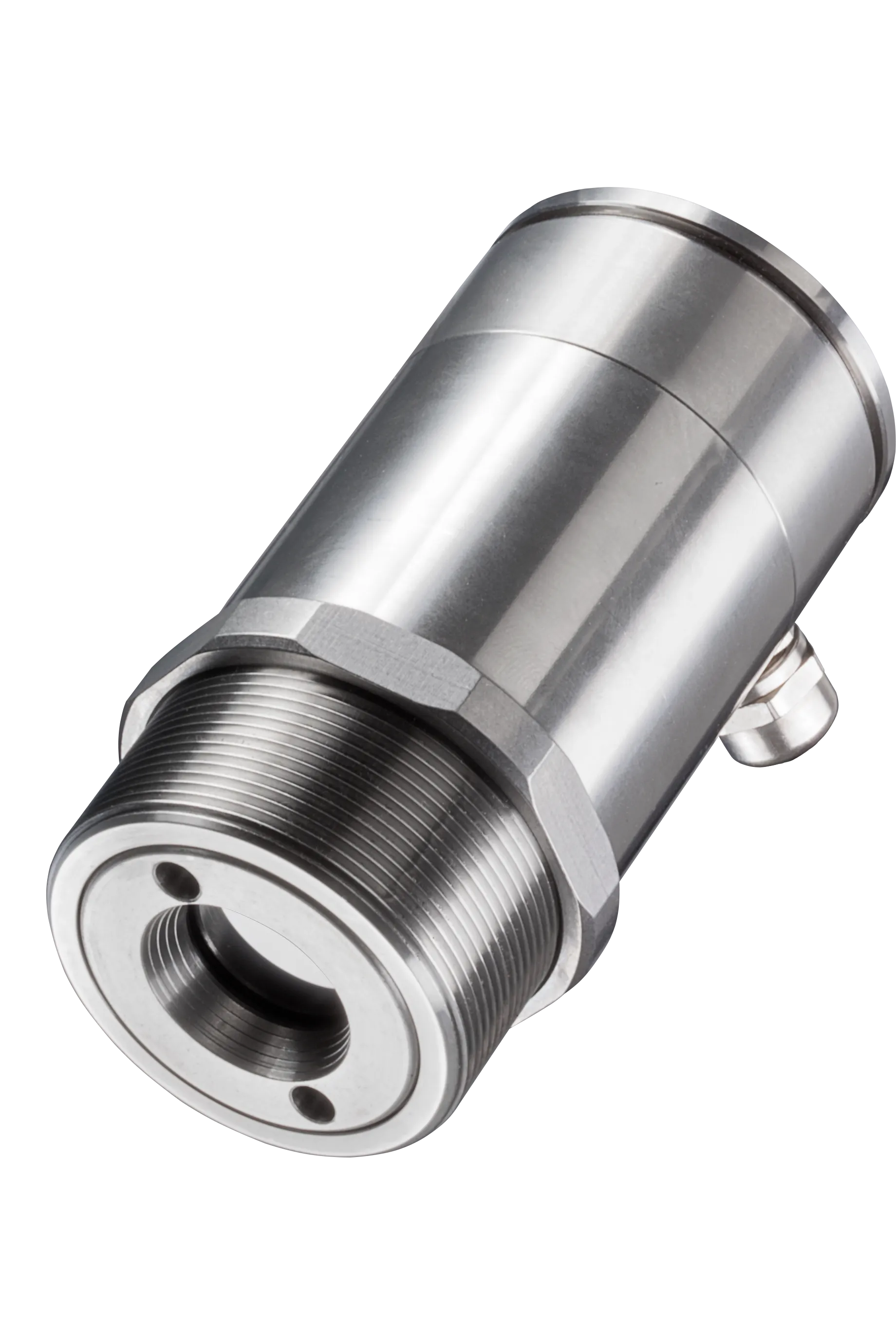

The Optris CTlaser fast LT series sets an industrial standard in non-contact temperature measurement with precision, speed, and a wide temperature range. Its two-piece design integrates an infrared sensor with a 50:1 optical resolution, ideal for monitoring fast-paced manufacturing processes.

The Optris CTlaser LT series establishes a benchmark in non-contact temperature measurement, boasting precision and a broad temperature range.

The IR thermometer optris CTlaser 05M allows precise and quick measuring of high temperatures of metal surfaces.

The IR thermometer optris CTlaser 1M allows precise and quick measuring of high temperatures of metal surfaces.

The CTlaser 2M series offers accurate non-contact temperature measurements for metals, secondary metal processing, and ceramics, ranging from 250 °C to 2000 °C. Models include 2ML (250 °C to 800 °C), 2MH (385 °C to 1600 °C), and 2MH1 (490 °C to 2000 °C), with optical resolutions of 150:1 or 300:1.
