IR Pyrometer, Modular – CT Series

Safety is the top priority, and the Optris CT series pyrometer addresses this with its version CTex, which can be used in hazardous area (ATEX) where typically explosion-proof sensors must be installed.

The Optris CTfast LT pyrometer quickly captures non-contact temperature data remotely. Its remarkably short response time of 6 ms makes it an ideal choice for applications requiring speedy measurements.

The Optris CT 1M pyrometer accurately measures temperatures from 485 °C to 2200 °C across different variants. Its specialized spectral range, compact size, and rapid response time suit hot metal applications.

The Optris CT 2M pyrometer, with its short-wavelength technology, ensures precision by being insensitive to emissivity variation and boasting high optical resolution. Available in variants to measure temperatures from 250 °C to 2000 °C, it caters to various ranges: 2ML (250 °C...800 °C), 2MH (385 °C...1600 °C), and 2MH1 (490 °C...2000 °C).

The Optris CT 3M is a reliable, non-contact temperature measurement solution. It is particularly adept at handling challenging materials in low-temperature environments, with a focus on metal applications.

The quick exposure time of only 90 μs makes the high speed IR thermometer CT 4M the perfect sensor for measuring fast processes.

The Optris CT G5 pyrometer is designed for precise temperature measurement in glass-related industries, featuring a two-piece sensor design with a separate electronic box for integration-friendly operation.

The Optris CT P3 pyrometer is designed for precise temperature measurement of thin plastic films, utilizing a spectral range of 3.43 µm for accuracy between 50 °C and 400 °C. While plastics thicker than 0.4 mm and pigmented films are easily measured in the long-wavelength IR spectral range, very thin plastic films are transparent in this spectral range.

The Optris CT P7 pyrometer is tailored for non-contact temperature measurement of thin plastics, spanning from 0 °C to 710 °C. Its 7.9 µm spectral region ensures precise readings, with a temperature-resistant head capable of withstanding up to 85 °C without cooling.

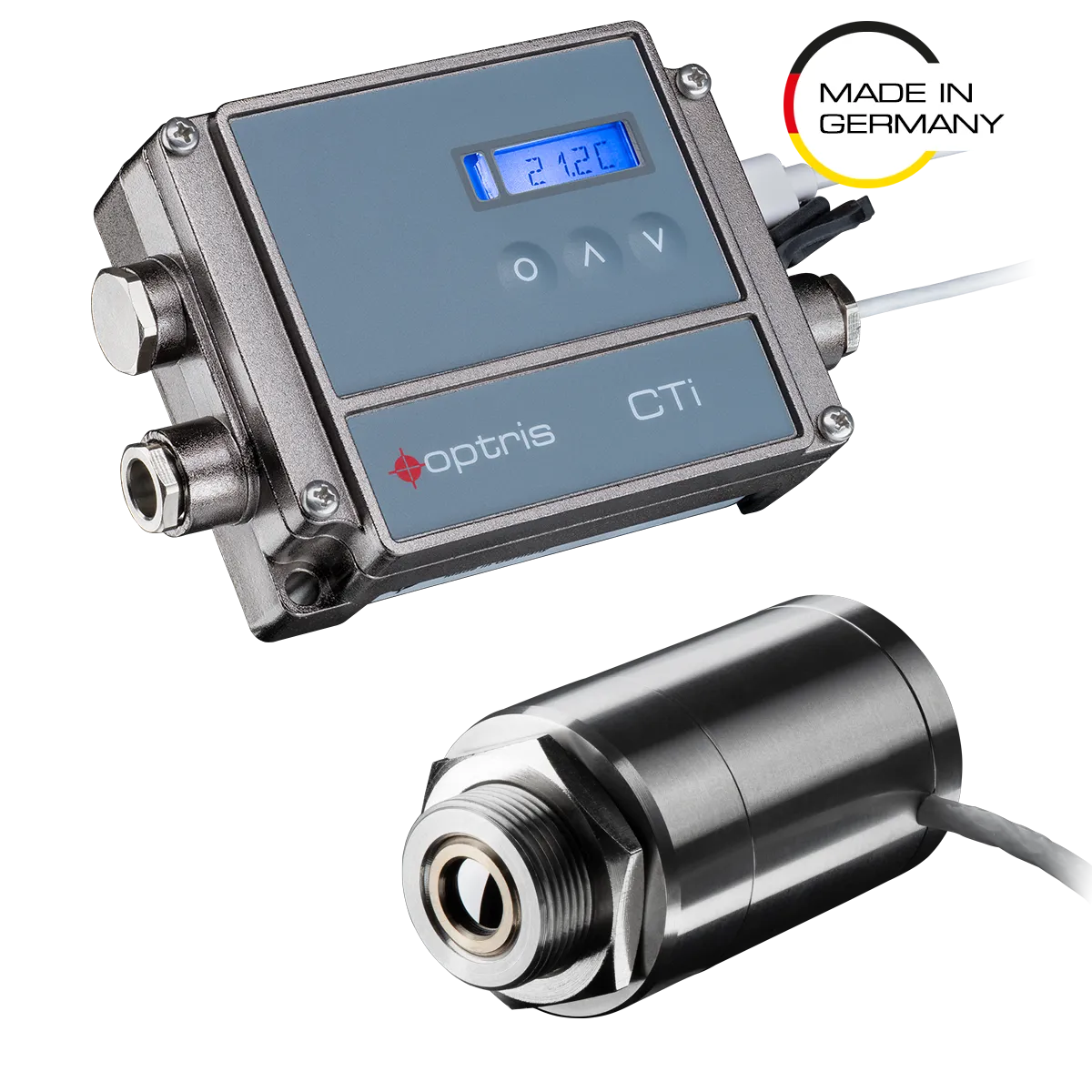

The Optris CTi LThot pyrometer shines in very high-temperature environments, offering exceptional temperature resistance of the sensing head, allowing operation in ambient temperatures of up to 250 °C (482 °F) without additional cooling.
