High Force Shakers (≥16700 lbf / ≥65 kN)

The V8900 is a high capacity air-cooled 80 kN shaker that is cost-effective to install, reliable andeasy to use, and delivers enhanced testing capability. This shaker is in a class of its own, delivering all the benefits of air-cooling in a high-capacity 80 kN shaker. Delivering outstanding performance in terms of force, displacement, high frequency and high overturning moment, you can use the shaker to test a wide range of payloads.

A water-cooled electrodynamic shaker for high-force, long-duration vibration tests of large articles, such as rocket and satellite components, wind turbines and automobile engines. It can support loads up to 1800 kg (3970 lb) and deliver peak forces of 105 kN (23,605 lbf).

A water-cooled electrodynamic shaker for shock and high-performance vibration testing of large devices, such as aircraft components up to 907 kg (2000 lb). It can deliver sine and random forces up to 89 kN (20,000 lbf) and has a maximum overturning moment of 3.13 kN·m (2308 lb·ft).

A water-cooled electrodynamic shaker for high-performance vibration and shock testing of large and extra-large articles, including satellite and aircraft components. It can apply forces up to 160.1 kN (36,000 lbf) and has an internal load support capacity of 2000 kg (4409 lb).

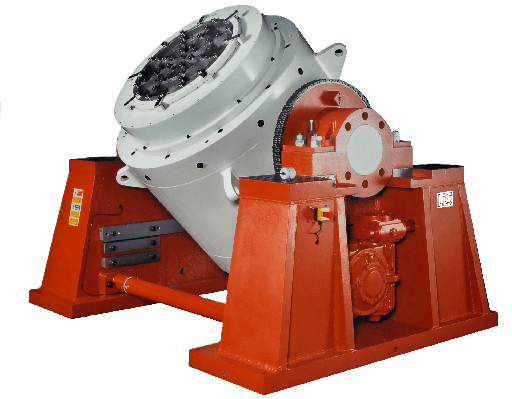

A water-cooled electrodynamic shaker for shock and high-performance vibration tests of extra-large payloads up to 5000 kg (11,000 lb), such as satellites, electronic assemblies and defence hardware. It has a peak sine force rating of 289.1 kN (65,000 lbf).
