Electrodynamic Vibration Test Systems

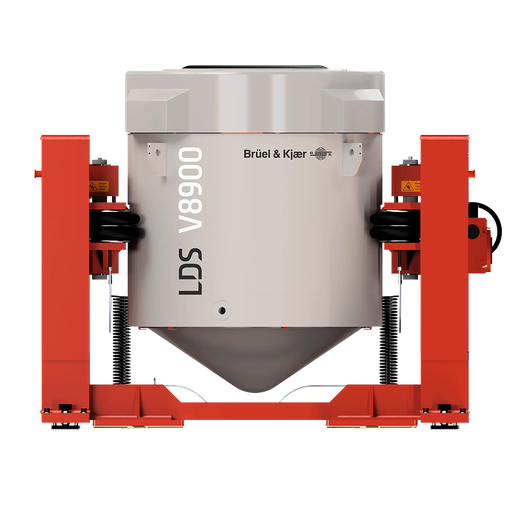

The V8900 is a high capacity air-cooled 80 kN shaker that is cost-effective to install, reliable andeasy to use, and delivers enhanced testing capability. This shaker is in a class of its own, delivering all the benefits of air-cooling in a high-capacity 80 kN shaker. Delivering outstanding performance in terms of force, displacement, high frequency and high overturning moment, you can use the shaker to test a wide range of payloads.

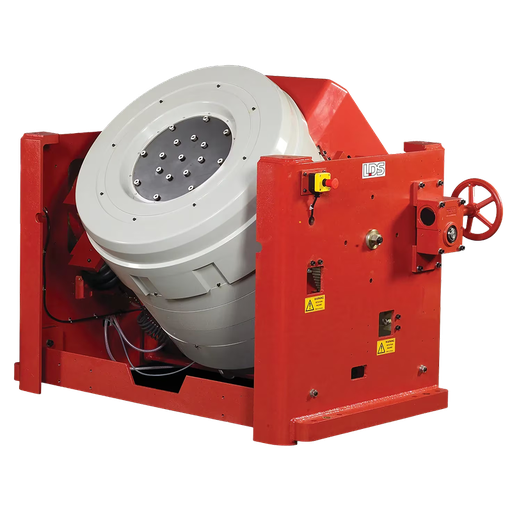

A water-cooled electrodynamic shaker for high-force, long-duration vibration tests of large articles, such as rocket and satellite components, wind turbines and automobile engines. It can support loads up to 1800 kg (3970 lb) and deliver peak forces of 105 kN (23,605 lbf).

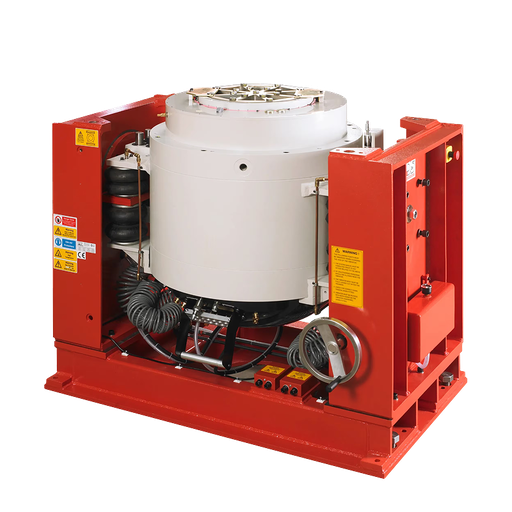

A water-cooled electrodynamic shaker for shock and high-performance vibration testing of large devices, such as aircraft components up to 907 kg (2000 lb). It can deliver sine and random forces up to 89 kN (20,000 lbf) and has a maximum overturning moment of 3.13 kN·m (2308 lb·ft).

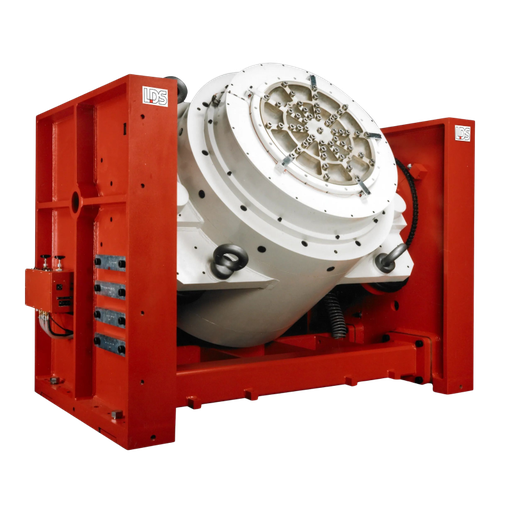

A water-cooled electrodynamic shaker for high-performance vibration and shock testing of large and extra-large articles, including satellite and aircraft components. It can apply forces up to 160.1 kN (36,000 lbf) and has an internal load support capacity of 2000 kg (4409 lb).

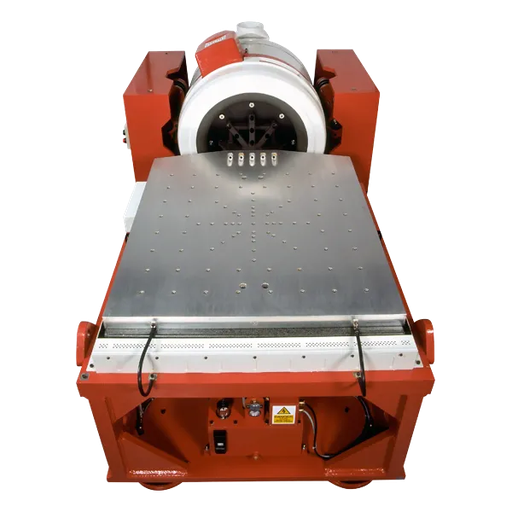

An air-cooled electrodynamic shaker for vibration and mechanical shock testing of large payloads up to 700 kg (1540 lb), such as complete battery assemblies for hybrid vehicles, satellite components, and military electronics and hardware. It has peak sine force ratings of 57.8 kN (13,000 lbf).

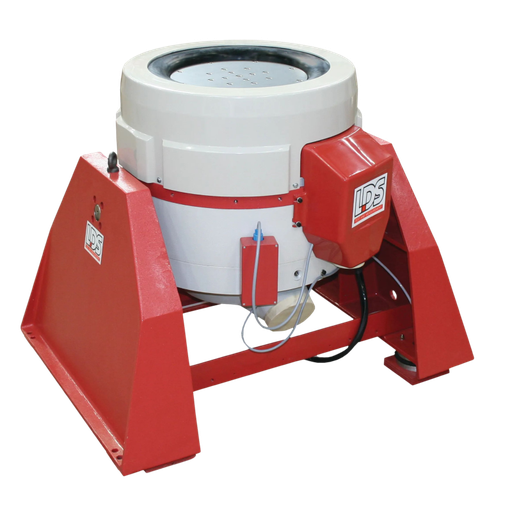

An air-cooled electrodynamic shaker designed for vibration and mechanical shock testing of medium-sized articles, such as automotive components and electronic assemblies. It can support payloads up to 160 kg (353 lb) and deliver maximum forces of 9.81 kN (2205 lbf).

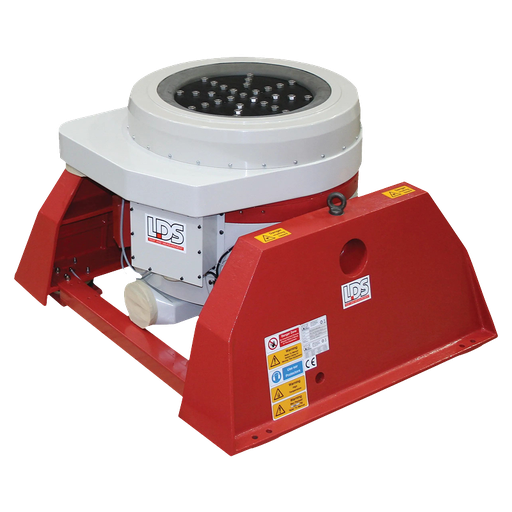

An air-cooled, electrodynamic shaker built for vibration and mechanical shock tests of medium-sized payloads up to 350 kg (770 lb), such as automotive components and other types of electronic assemblies. It has maximum force ratings up to 22.2 kN (5000 lbf).

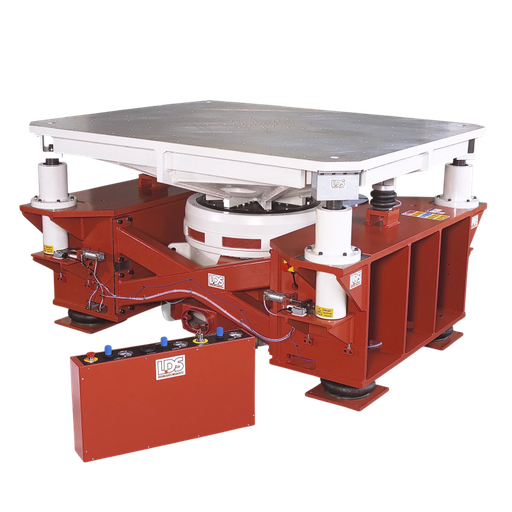

An air-cooled electrodynamic shaker used in R&D for vibration and shock testing of medium-to-large payloads up to 600 kg (1323 lb), such as satellite components, automobile parts, electronic assemblies, and military hardware. Maximum forces of 35.6 kN (8000 lbf).

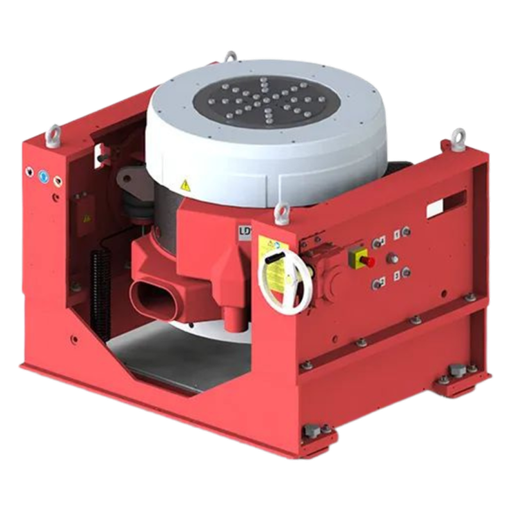

An air-cooled electrodynamic shaker used in R&D and production for vibration and mechanical shock testing of medium-to-large payloads up to 600 kg (1323 lb) as standard, such as the batteries of electric and hybrid vehicles. It has a peak sine force rating of 35.6 kN (8000 lbf).

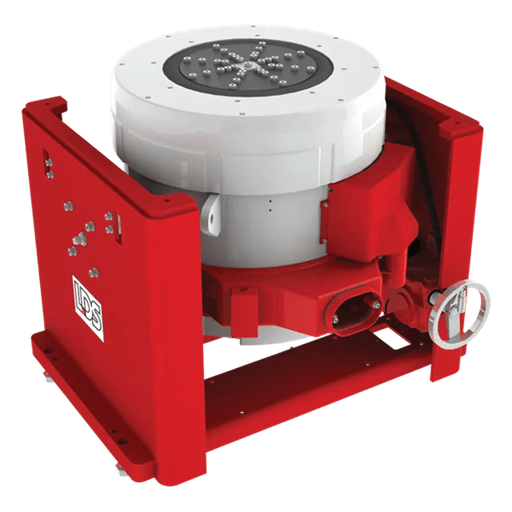

An air-cooled electrodynamic shaker used for vibration and mechanical shock testing of medium-to-large payloads up to 600 kg (1323 lb), such as automobile parts, rocket and satellite components, and electronic assemblies. It has a long stroke and peak force ratings of 35.6 kN (8000 lbf).

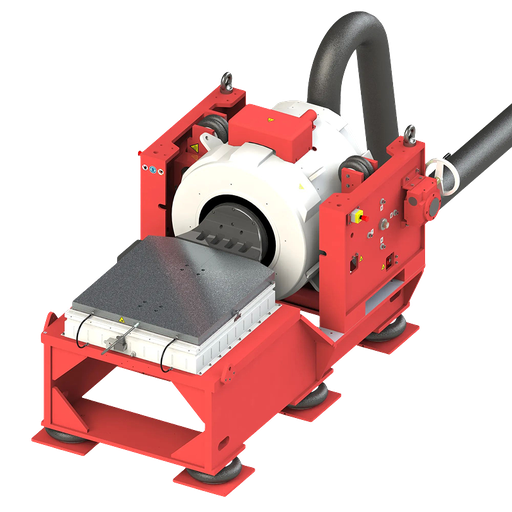

An air-cooled shaker system for vibration and mechanical shock testing with sinusoidal, random,or transient excitation. For payloads up to 700 kg (1540 lb), such as electric vehicle (EV) battery cells and modules, nanosatellite, satellite, and component testing, or component and subsystem durability tests. With a peak sine force rating of 59 kN (13,250 lbf) and a max. shock force of upto 175 kN (39,340 lbf).

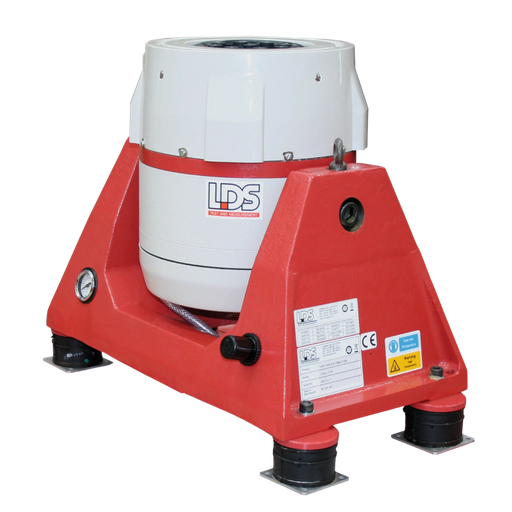

An air-cooled electrodynamic shaker for vibration testing of payloads up to 25 kg (55 lb), such as small automobile and aircraft components, electronic subassemblies and computer equipment. It has a maximum force rating of 940 N (211 lbf).

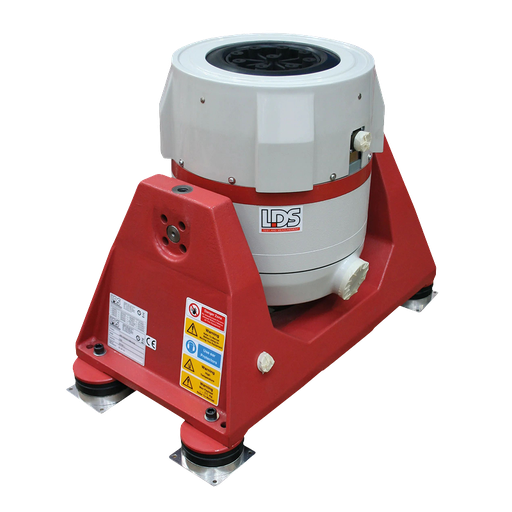

An air-cooled electrodynamic shaker for vibration testing of payloads up to 50 kg (110 lb), such as aircraft instrumentation and other electronic and mechanical subassemblies. It has a peak sine force rating of 2.2 kN (495 lbf).

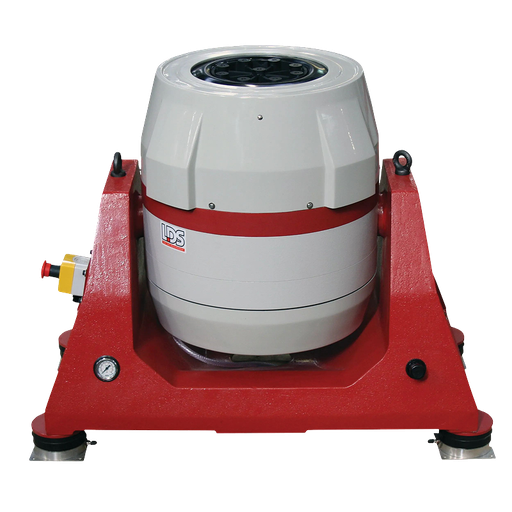

An air-cooled electrodynamic shaker for vibration testing of small- and medium-sized payloads up to 100 kg (220 lb), such as aircraft and automobile components, computer equipment, and other electronic and mechanical subassemblies. Maximum force rating of 2.9 kN (652 lbf).

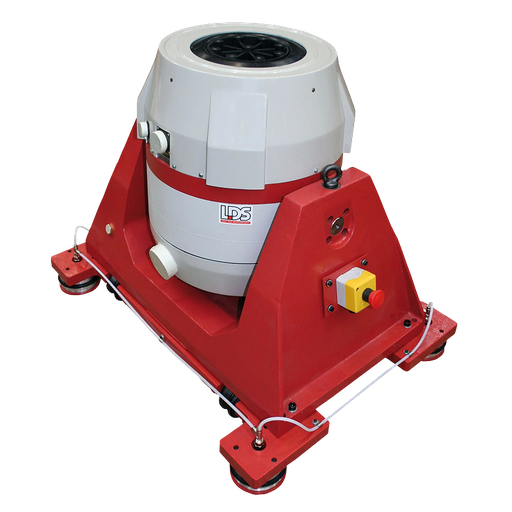

Air-cooled electrodynamic shaker for vibration and shock testing of small-/medium payloads - up to 100 kg (220 lb), including aviation instrumentation, satellite components, automobile parts, electronic and mechanical subassemblies. Peak force rating of 5.12 kN (1150 lbf).

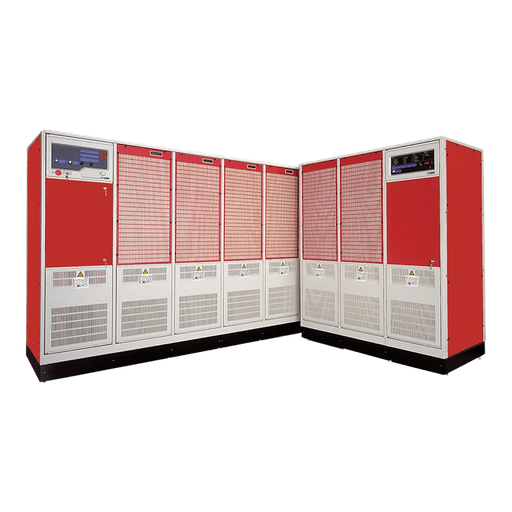

A range of digitally controlled, switch-mode amplifiers used to drive electrodynamic shakers with force ratings of at least 89 kN (20,000 lbf) for vibration testing and other applications. Available with outputs from 70 to 280 kVA.

A compact and efficient amplifier with a 5 VA power output. Used to drive permanent magnet shakers and small shakers with force ratings up to 5.12 kN (1150 lbf) for laboratory and modal testing applications.

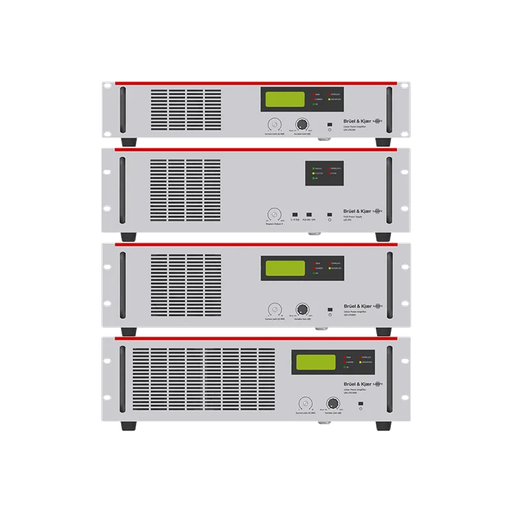

A range of economical amplifiers with outputs from 50 – 1000 W used to drive permanent-magnet and small electrodynamic shakers with force ratings from 8.9 N (2 lbf) to 489 N (110 lbf) for vibration testing and other applications.

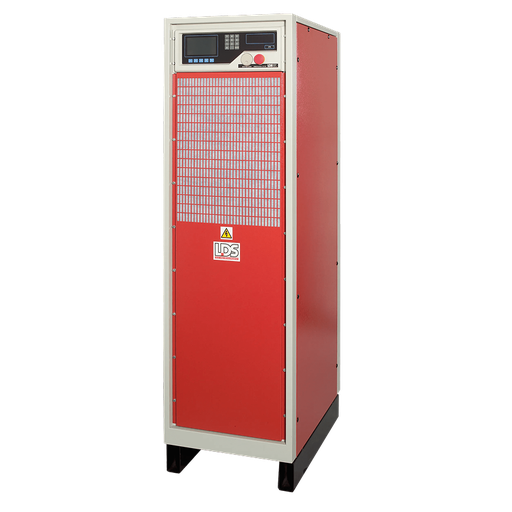

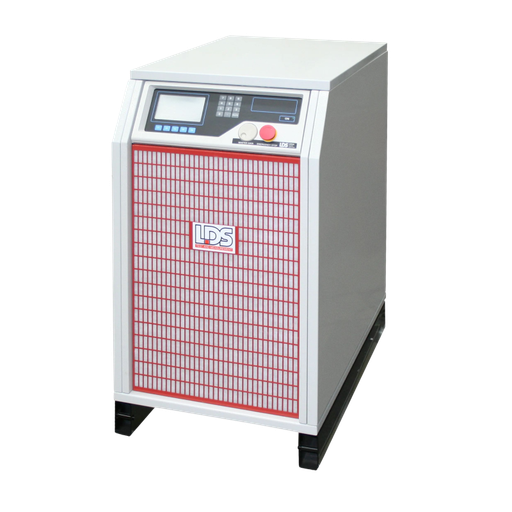

Available with outputs ranging from 8 to 56 kVA, these switch-mode power amplifiers are used to drive electrodynamic shakers with force ratings of at least 9.81 kN(2205 lbf), such as LDS V830.
Request a quote
Contact us

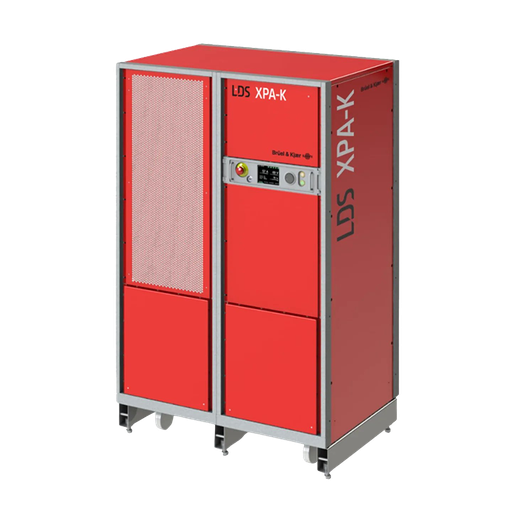

Available with outputs ranging from 88 to 128 kVA*, these switch-mode power amplifiers are used to drive the best in class V8900 electrodynamic shakers with force rating 80 kN.
