JTAG Boundary-Scan PCB Test Programming

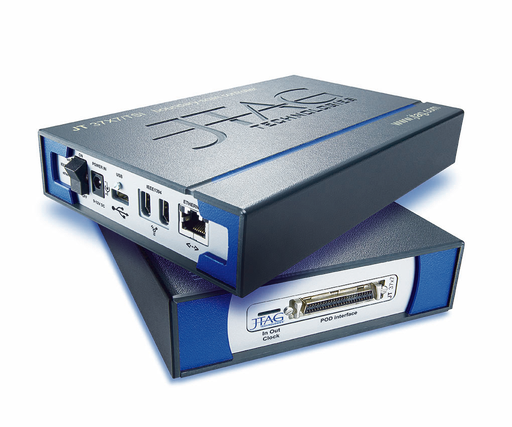

High speed, high-performance, flexible and portable. The JT37x7/TSI JTAG Boundary-scan controller system features three PC interface standards: USB, Ethernet and Firewire, all housed in a robust desk-top package.

JTAG ProVision is a complete solution for boundary-scan testing, PLD programming, and Flash in-system programming. It supports over 40 EDA/CAD systems, extensive libraries for non-JTAG devices, and includes an integrated sequencer to simplify production-ready test and programming plans. Available as a full suite or through specific licenses.

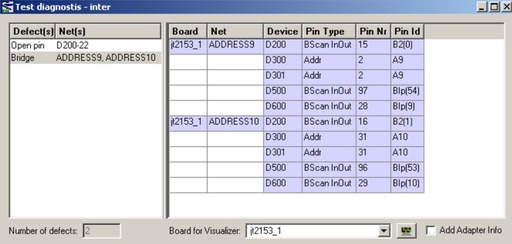

BSD Test Diagnostics software can be added to either developer or factory run-time systems to further improve the location of faults such as net bridges (short-circuits), open pins, open nets and even ‘twisted’ connections that can occur within cable assemblies. BSD test diagnostics reports any faults in a verbose English language statement with pin-level information included and can easily interpret multiple fault conditions.

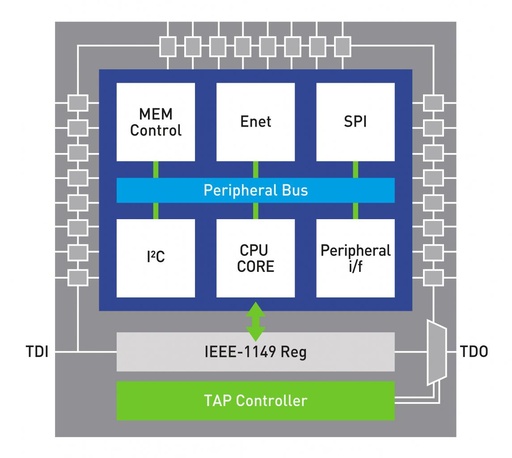

CoreCommander routines take control of key processor core (e.g. ARM, PPC, X-scale, Cortex etc.) functions using the built-in emulation/debug functions found in today’s RISC and DSP cores. They have been developed to speed-up board testing and debug by enabling kernel-centric testing.
