The RAD cabinet oven features horizontal recirculating airflow and exceptional temperature uniformity. The result is proven reliability in demanding production and laboratory applications, such as curing, drying, stress relieving, aging, UL testing and other process-critical applications.

The RFD cabinet oven features horizontal recirculating airflow and exceptional temperature uniformity. The result is proven reliability in demanding production and laboratory applications, such as curing, drying, stress relieving, aging, UL testing and other process-critical applications.

MODEL Z820WA [20024]
9B990

Model P703B Power Supply EAR99

Digital triaxial MEMS accelerometer and temperature sensor
Acceleration range ±16 g, peak
Frequency response, ± 3 dB 2 Hz - 5 kHz
Temperature measurement range –20° to +70° C
Digital output only; communication Interface RS485 | Modbus RTU Protocol.
Excitation (Power) 6 - 24 VDC
Dimensions 35mm dia. x 26 mm h | Weight 75 grams | IP67 | Case material: (upper A6061 aluminum) / (lower: 303 stainless steel).
Connector 4-socket M8 (Mating connector: 4-pin M8)
Mounting adhesive mount via sensor flat base | screw mount adapter (optional) | magnet mount adapter (optional)
Operating temperature –20° to +70° C
Storage temperature –20° to +80° C
Operating humidity 5 - 95% RH

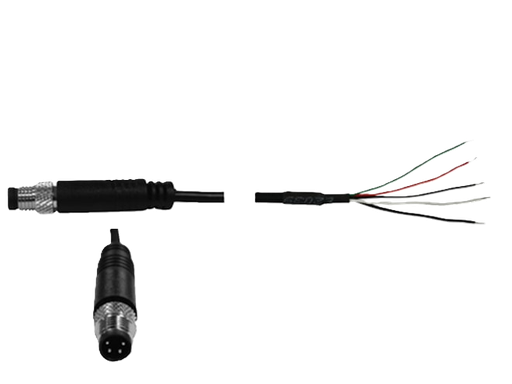

50’ M8 (4 pin), IP 67 cable

SF8 Cementing Pad, 1/4-28, 1.00
DIA, 0.40 LG EAR99

Cementing pad for accelerometer mounting, 1/4-28 integral stud, 1" diameter, 21.5 grams

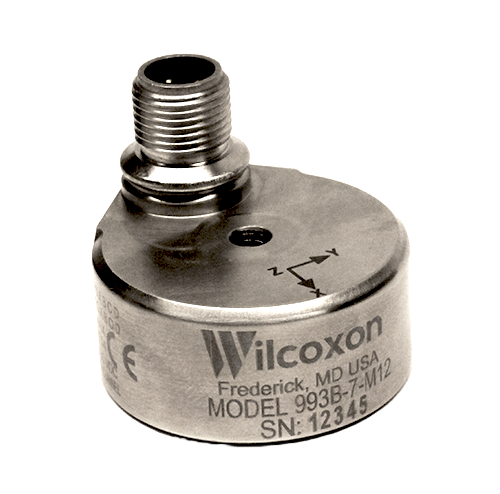

3-axis accelerometer with M12 connector, 100 mV/g

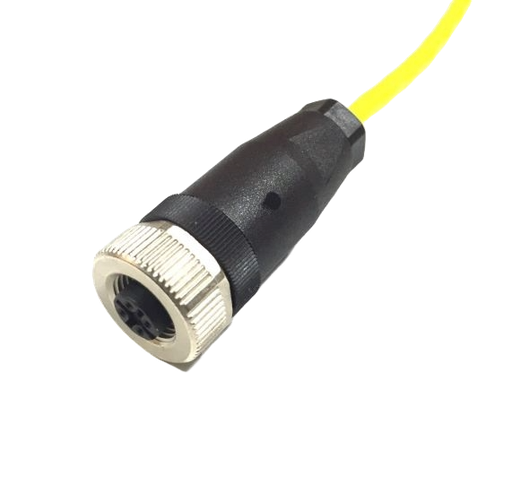

RM12W Molded 5-socket M12 connector
Blunt Cut
Four conductor, shielded, Kevlar reinforced, Polyurethane jacket

Model iT150
Vibration Transmitter

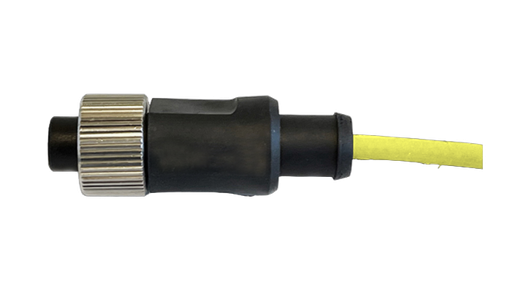

J9T2A twisted pair, braided shield, high temp 200°C, yellow
Teflon® jacketed 16’ cable with 6W molded, 2 socket MIL-C-
5015, IP67 (submersible to 1 meter) connector with electrical
isolation between the shield and transducer housing on one
end and blunt cut on other end.
Molded connector must be assembled at factory

Length: 16 Feet, 5 Meters

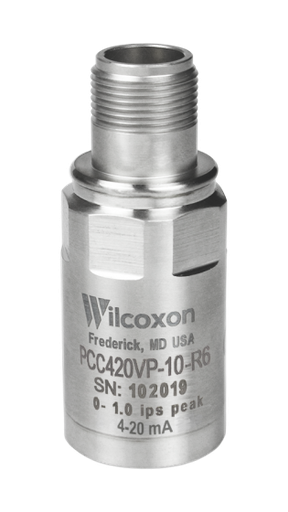

Top exit, compact, 105°C, 4-20 mA (±5% @ full scale) proportional to
acceleration or velocity; peak or rms, 1/4-28 mounting hole (stud included),
MIL-C-5015 connector

A water-cooled electrodynamic shaker for shock and high-performance vibration tests of extra-large payloads up to 5000 kg (11,000 lb), such as satellites, electronic assemblies and defence hardware. It has a peak sine force rating of 289.1 kN (65,000 lbf).

Top exit, compact, 105°C, 4-20 mA (±5% @ full scale) proportional to
acceleration or velocity; peak or rms, 1/4-28 mounting hole (stud included),
MIL-C-5015 connector

9 Position Two Piece Backshell Connector Silver 180° Shielded

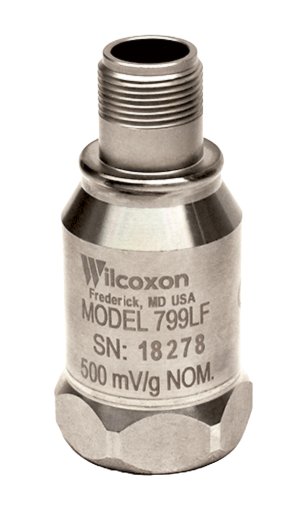

Top exit, low noise, low frequency (0.1 Hz), MIL-C-5015 connector 500 mV/g, ±5% sensitivity tolerance
