Digital triaxial MEMS accelerometer and temperature sensor
Acceleration range ±16 g, peak
Frequency response, ± 3 dB 2 Hz - 5 kHz
Temperature measurement range –20° to +70° C
Digital output only; communication Interface RS485 | Modbus RTU Protocol.
Excitation (Power) 6 - 24 VDC
Dimensions 35mm dia. x 26 mm h | Weight 75 grams | IP67 | Case material: (upper A6061 aluminum) / (lower: 303 stainless steel).
Connector 4-socket M8 (Mating connector: 4-pin M8)
Mounting adhesive mount via sensor flat base | screw mount adapter (optional) | magnet mount adapter (optional)
Operating temperature –20° to +70° C
Storage temperature –20° to +80° C
Operating humidity 5 - 95% RH

SF8 Cementing Pad, 1/4-28, 1.00
DIA, 0.40 LG EAR99

Cementing pad for accelerometer mounting, 1/4-28 integral stud, 1" diameter, 21.5 grams

Top exit, compact, 105°C, 4-20 mA (±5% @ full scale) proportional to
acceleration or velocity; peak or rms, 1/4-28 mounting hole (stud included),
MIL-C-5015 connector

A water-cooled electrodynamic shaker for shock and high-performance vibration tests of extra-large payloads up to 5000 kg (11,000 lb), such as satellites, electronic assemblies and defence hardware. It has a peak sine force rating of 289.1 kN (65,000 lbf).

Top exit, compact, 105°C, 4-20 mA (±5% @ full scale) proportional to
acceleration or velocity; peak or rms, 1/4-28 mounting hole (stud included),
MIL-C-5015 connector

EA-BT 20000 Series

EA-BIM 20005

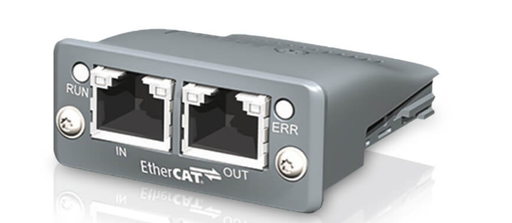

EA-IF-AB-ECT

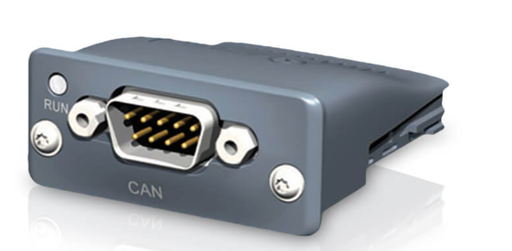

EA-IF-AB-CAN

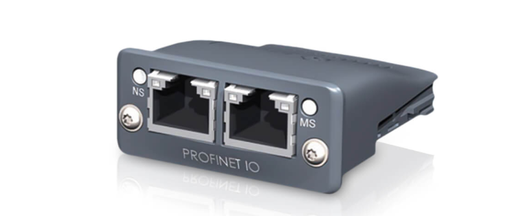

EA-IF-AB-PNET2P

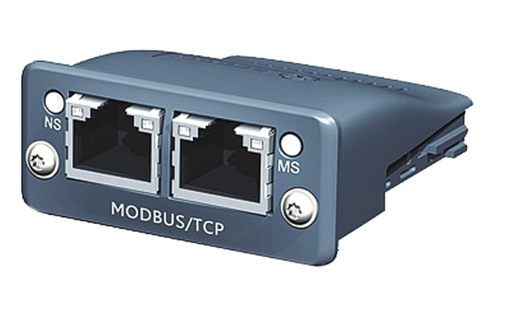

EA-IF-AB-MBUS2P

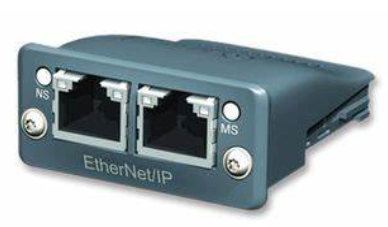

EA-IF-AB-ETH2P

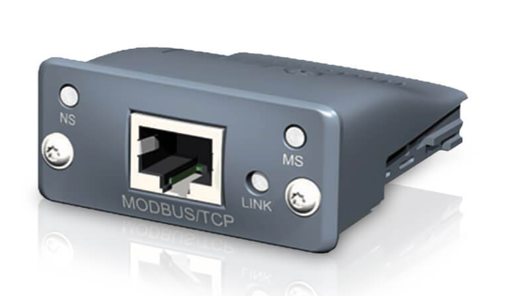

EA-IF-AB-MBUS1P

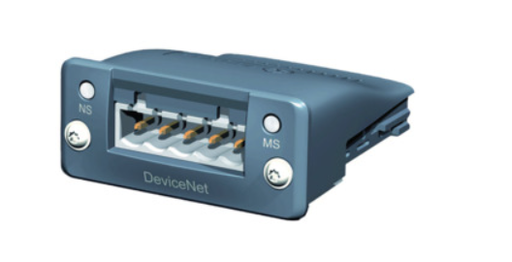

EA-IF-AB-DNET

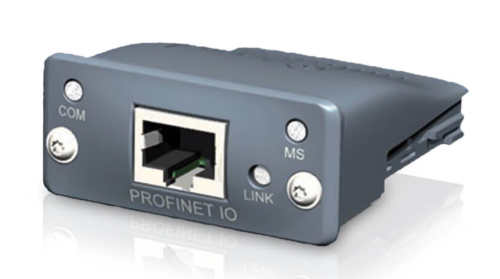

EA-IF-AB-PNET1P

EA-IF-AB-ETH1P

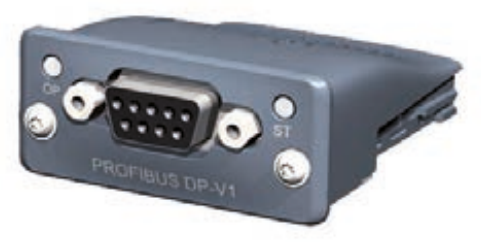

EA-IF-AB-PBUS

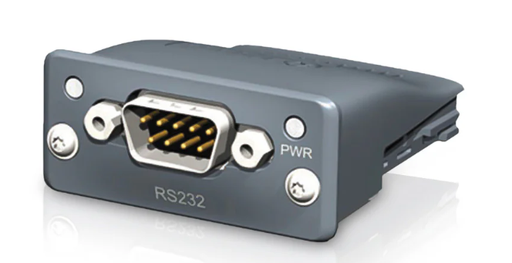

EA-IF-AB-RS232

Dual-port CANopen interface for industrial automation and EV test systems. Supports CiA 301/405 profiles with EDS files for easy integration into PLC and automotive data networks. Article No.: 35400100 | Part No.: EA-IF-AB-CANO

EA-Lizenz BS LEAD-ACID
