The PTC Non-Magnetic Test Oven is specifically designed for burn-in, qualification testing and calibration of electromagnetic downhole drilling instruments. In the field, these ovens are used for periodic calibration of the electronics on the drill tool.

Despatch has modified its high performance LAC benchtop industrial oven to create a custom splicing oven for carbon fiber production. Carbon fiber manufacturers can use the oven to splice fiber strands together to keep fiber running continuously through the production line.

Despatch created a custom LCC benchtop oven and software system for a customer requiring the ability to scan product label bar codes and employee ID tags. The LCC system features special Protocol Manager™ software, individual “mini” PLCs with displays, and a touch screen operator interface.

Despatch created a custom LCC benchtop oven and software system for a customer requiring the ability to scan product label bar codes and employee ID tags. The LCC system features special Protocol Manager™ software, individual “mini” PLCs with displays, and a touch screen operator interface.

This test oven was designed with a fiberglass body and structural supports so it does not interfere with magnetic technology in the drilling equipment being tested.

Despatch received an order for a PNF Inert Atmosphere Furnace for its beryllium copper aging process. A precondition of the order was that a test be performed to confirm that a uniformity of +/- 10°F at 1000°F could be maintained.

Despatch has manufactured a low-temperature, conveyor oven for a global medical technology company to use in their unique curing application. The oven design is unique in that it includes two belts to allow two separate product streams to be processed in the oven.

Despatch has designed and manufactured a custom conveyor oven for a global surgical device supplier. The oven features a 44” wide stainless steel flat wire process belt that passes through a 500°F heated zone, then through a cooling zone with ambient air cooling.

An economical method for processing high quality loads that require inert atmospheres. Used in applications to prevent oxidation of parts being processed. The oven features a purge flow meter and a maintain flow meter, a manual 3-way nitrogen valve and a chamber pressure gauge.

A customer needed an oven for heat treating aluminum parts at 750℉ with a maximum range up to 850℉. This top-loading oven allows heavy parts to be loaded by an overhead crane. A pneumatically operated swing-up door addresses the problem of accessibility.

Despatch designed this custom clean room oven for a customer to dry their semiconductor parts in a clean room environment. The cabinet of this oven was sized and configured to maximize the amount of product dried in the oven in each batch and optimize throughput capabilities.

PCC1-26 Conveyor Oven with Custom End Tables

LNB Cabinet Oven with Dual Chamber for Contact Lens Curing

Inert Atmosphere Cabinet Oven for Heat Treating

This custom modified RFD cabinet oven was designed for heating various mixtures of oils. Pipes run through the ports and the small access doors are used to open quickly to manually open or close various valves, the windows to view the gauges.

A customer required a variable speed Teflon fabric belt to dry/cure photo-resist material on a glass substrate. A quartz rod slider bed was provided to minimize particulate generation. Despatch modified a HEPA filtered PCC continuous oven to meet the customers clean processing needs.

LAC Benchtop Oven with Custom Gliding Drawer

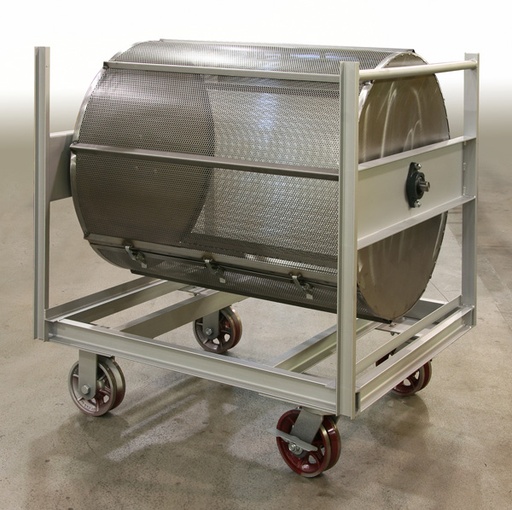

This specially designed truck with automatic engagement to a rotating drive is for warming various plastic pellets to be used in injection molding processes. The rotating cart keeps the pellets from sticking together while at temperature.

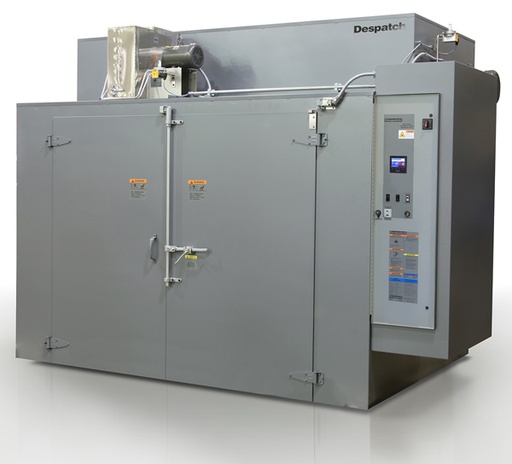

A CBD oil manufacturer needed an industrial oven for decarboxylation. Dried hemp is put into the oven bulk loaded onto pans that are loaded on racks and wheeled into the oven. The result is that the CBD oil can be extracted more readily from the baked decarboxylated plant matter which increases the yield in the process.

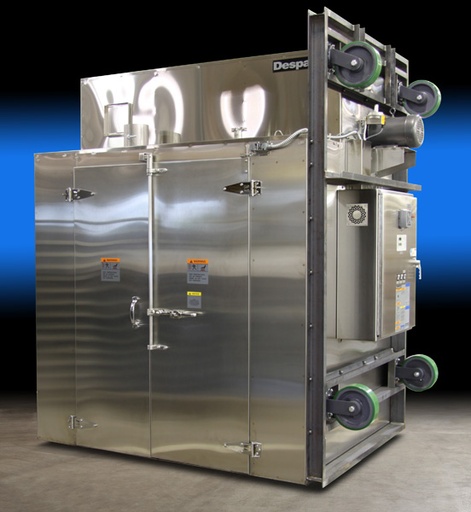

This unique request for a side cart on the Despatch TAC oven was needed in order to get the oven into a clean room. The second photo below shows the oven being moved through the door of the room. The cart was built around the oven controls on the side and saved the customer from having to make a larger door.
